Capture Position

Text Language Definition

function T1Axis.CapturePosition:double;

Description

Capture Position returns the position where the capture event occurred. The capture event occurs when the capture is armed and the selected capture signal transitions as sepcified by Set Capture Trip. The Capture Position is only valid if Capture Has Tripped.

Escapes

Reading the Capture Position does not produce any escapes.

Examples

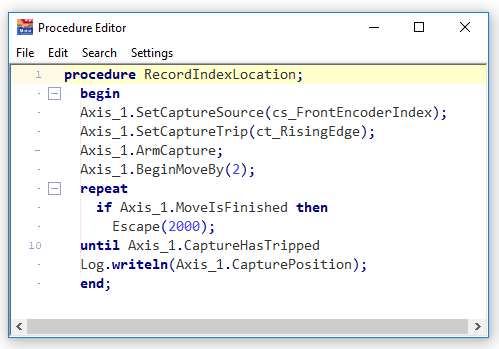

This procedure shows the commands involved in configuring a capture event, performing a capture, and reading the result.

A source for the signal is chosen, the rising edge is chosen, and the capture is armed. Motion is started that should be far enough to cause the capture event to occur. The controller then waits until the capture trips. If the move finishes before the capture trips (which should not happen) then an exception is generated to notify the program that uses this procedure that something has gone wrong. If the capture does occur it is recorded in a list box named log.

This structure is an example of a "position out" that could be considered analagous to a "time out". With a time out something is suppsosed to occur within a certain amount of time and the absence of that occurance is an error. With motion systems the amount of time for a move can vary depending on speeds and accelerations. Rather than expecting something to occur in a certain amount of time it is more robust to have structures that expect things to happen within certain distances.

Related Topics

Arm Capture
Capture Bit
Capture Has Tripped
Set Capture Trip
Set Capture Source
