Profile Velocity
Text Language Definition
function T1Axis.ProfileVelocity:single;
Description
Profile Velocity returns the current commanded speed (signed magnitude) that is being used to generate the trapezoidal motion trajectory. During slew, the magnitude of Profile Velocity is the same as Speed. During Accel and Decel the profile velocity varies linearly with progress through the phase.
Escapes
The Profile Velocity command does not generate any escapes.
Examples

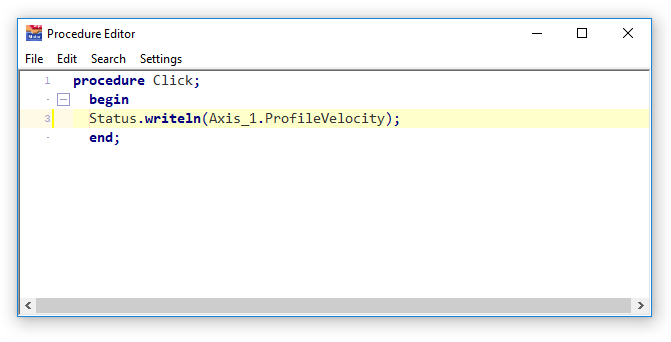

This procedure writes the current commanded speed as a signed magnitude to the Status display:
