Set Counts Per User Unit

Text Language Definition

procedure T1Axis.SetCountsPerUserUnit(Ratio:double);

Description

The Counts Per User Unit command allows motion to be described in convenient units of rotations, degrees, or millimeters instead of motor steps. An explanation of how to identify the proper value for Counts Per User Unit is described in the Introduction topic User Units. This command is used during setup to set the ratio to the desired value.

Escapes

Set Counts Per User Unit does not produce any escapes.

Examples

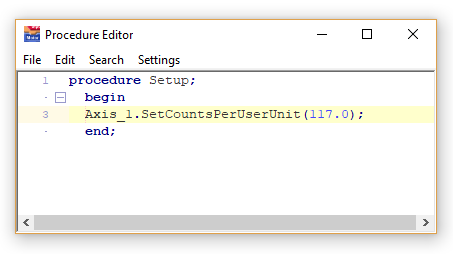

This setup procedure initializes the ratio of fundamental motor units to the chosen user unit.
