Turn Yellow LED

Command

Not Applicable

Description

The Turn Yellow LED block will turn the Yellow LED on the controller on or off. This LED is available for application use to provide status or help as a visible diagnostic indicator.

Escapes

The Turn Yellow LED block does not produce any escapes.

Examples

This block list turns on the Yellow LED if a move is in progress:

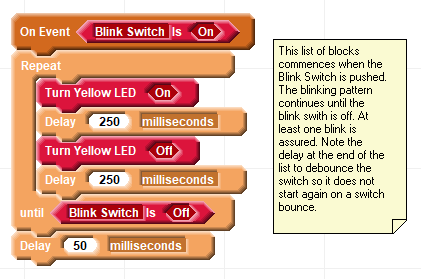

This block list starts blinking the yellow led when a switch is pushed and continues until the switch is released. Note that the condition of "on" or "off" can be selected:

Related Topics

Named Output Turn
